Trade show booth sizes explained: from 10×10 to island

How booth sizes are measured

In North America, booth space is usually sold in feet, written as frontage by depth. A 10×20 is twenty feet wide along the aisle and ten feet deep, for example, though shows don't always list the numbers in the same order, so check the floor plan. Most floor plans are laid out on a ten-foot grid, which is why sizes step up in tens: 10×10, 10×20, 20×20, 20×30, 30×30, and larger.

The size is only the start. The floor plan also shows columns, utility access points, overhead obstructions, and which aisles each side faces. Two booths with the same dimensions can perform very differently depending on what's around them, so read the plan closely before you commit to a space.

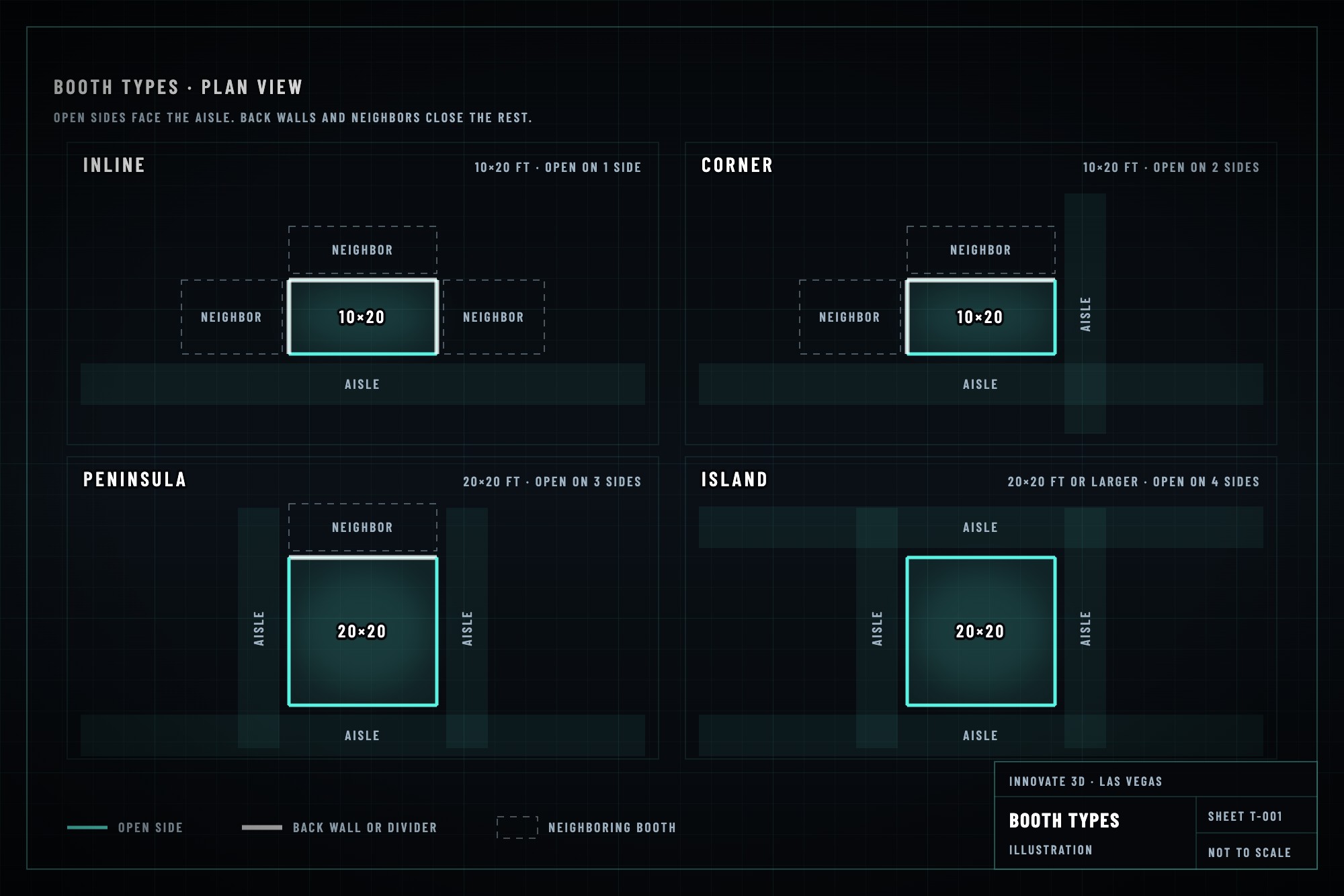

Inline booths (10×10, 10×20)

An inline booth sits in a row with neighbors on both sides and is open to one aisle. It's the most common starting point and the most demanding to design well, because the back wall does most of the work.

Inline booths usually have tighter height and sightline limits than larger spaces, so impact comes from graphics, lighting, and a clear focal point rather than height. Good small-space design makes every foot count.

Many shows also limit how tall anything can be toward the front of an inline space, so neighbors aren't hidden behind your display. Plan tall elements against the back wall and keep the aisle edge open and inviting.

Corner booths

A corner booth is an inline space at the end of a row, open on two sides. Two aisles of traffic means two ways in, so entry points and sightlines from both directions matter.

The best corner layouts angle the main feature toward the corner itself, where both streams of traffic can see it, and keep the side wall low enough that the booth reads as open. Corners often cost more than a standard inline space, so design to use both faces.

Peninsula and end-cap booths

A peninsula is open on three sides and backs onto another booth. It gives room for a hero moment facing the aisle and quieter meeting space toward the back.

Smaller three-sided spaces at the end of a row are often called end-caps, and shows frequently treat them differently from larger peninsulas, with tighter limits on how high the back wall can run and how far it can extend. Where two peninsulas share a back wall, some shows call the result a split island. The exhibitor manual defines each type for that show.

Island exhibits (20×20 and up)

An island is open on all four sides. It's a freestanding environment, which means it has to look finished from every angle and give people a reason to walk in from any aisle.

Islands usually allow more height, including hanging signs, which makes them visible from across the hall. For layouts that work, see these island booth design ideas.

With no back wall, storage, meeting rooms, and the staff area have to live inside the structure. Plan them early, so the booth stays open on every side instead of turning its back on one aisle.

Double-deck exhibits

A double-deck adds a second level, typically for meetings and hospitality with a view of the floor. Structure, stairs, and load limits need engineering and show approval, so they need the longest lead time.

A second level is usually only practical on larger islands, and shows often require stamped drawings, guardrails, and an approval process that starts well before the build. It also changes the schedule on the floor, since a deck has to be assembled before anything else can go in around it.

Rules that change with booth type

Each booth type comes with its own set of rules, and they vary from show to show. The ones that most often shape a design, and that are worth checking in the manual before the first sketch:

• Maximum heights for walls, structures, and hanging signs
• Sightline rules that keep the front of a booth open to neighbors
• Where back walls may run and how tall they can be
• Whether hanging signs or rigging are allowed at all
• Fire and safety requirements for ceilings, enclosed rooms, and second levels
• Finished-side rules for any wall visible to a neighbor or an aisle

How much space you actually need

Work out the footprint from the activities, not the other way around. List everything that has to happen in the booth at the same time: demos, conversations, meetings, product displays, a hospitality counter, storage. Give each a rough area, then add room for people to move between them without crowding the aisle.

Staff count matters as much as furniture. A booth that's too small for the team feels cramped and turns visitors away; a booth that's too large for the team feels empty. If the numbers point to a space you can't staff or fill, a well-designed smaller booth will do more for you.

Think about the next show too. If you expect to grow, or to exhibit in different sizes at different shows, choose a footprint this year that the same pieces can work in next year, and have the exhibit designed to scale.

How to choose

Start with what has to happen in the space, then size it:

• How many demo stations or products need to be shown at once
• Whether you need private meeting rooms or a lounge
• Expected traffic and how long people should stay
• Storage for literature, giveaways, and personal items
• The show's rules for your booth type, from the exhibitor manual
• Whether the exhibit needs to work in other sizes at future shows
